Specializing in Class 5 Vault Doors for over 15 years

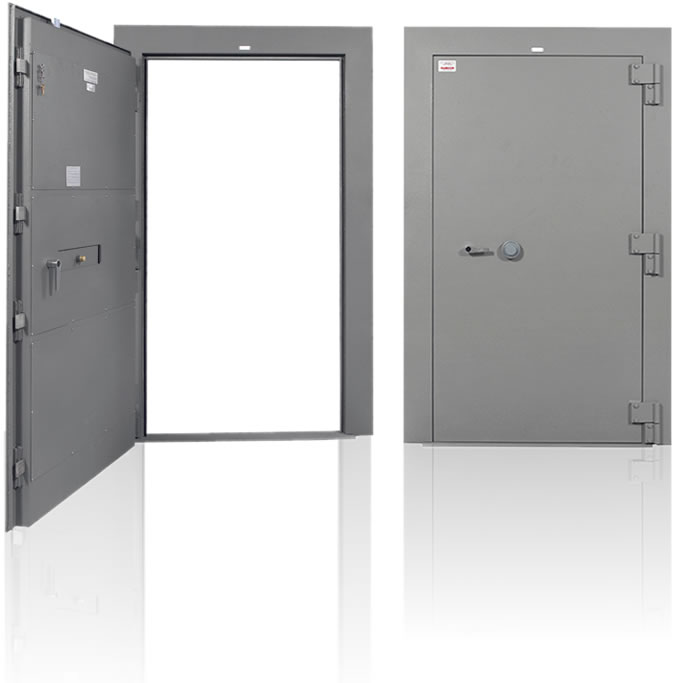

Class 5-A Vault Door (Armory)
| Rating: | GSA Approved Class 5-A |
|---|---|

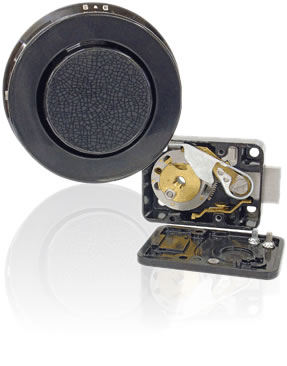

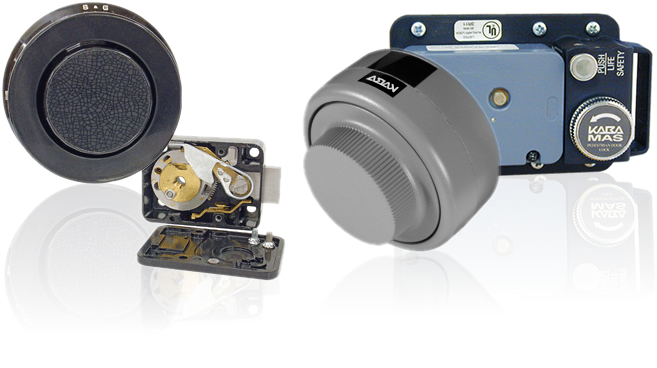

| Lock | Sergeant and Greenleaf 2937 |
| Federal Specification: | AA-D-0600 , FF-L-2937 |
| Clear Opening: | 40" x 78" |
| Masonary Opening: | 48" x 83" |
| Weight: | Approximately 1,500 lbs. |
| Available Swing: | Left Swing / Right Swing |
| Interior Escape Device | Yes |
| Optical Device: | Optional |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | Frame, threshold and hardware are included and cannot be modified per GSA Design. |
Class 5-V Vault Door (Security)
| Rating: | GSA Approved Class 5-V |
|---|---|

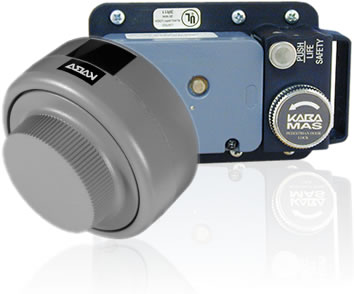

| Lock | Kaba Mas X-10 |
| Federal Specification: | AA-D-0600 , FF-L-2740 |
| Clear Opening: | 40" x 78" |
| Masonary Opening: | 48" x 83" |
| Weight: | Approximately 1,500 lbs. |
| Available Swing: | Left Swing / Right Swing |
| Interior Escape Device | Yes |
| Optical Device: | Optional |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | Frame, threshold and hardware are included and cannot be modified per GSA Design. |

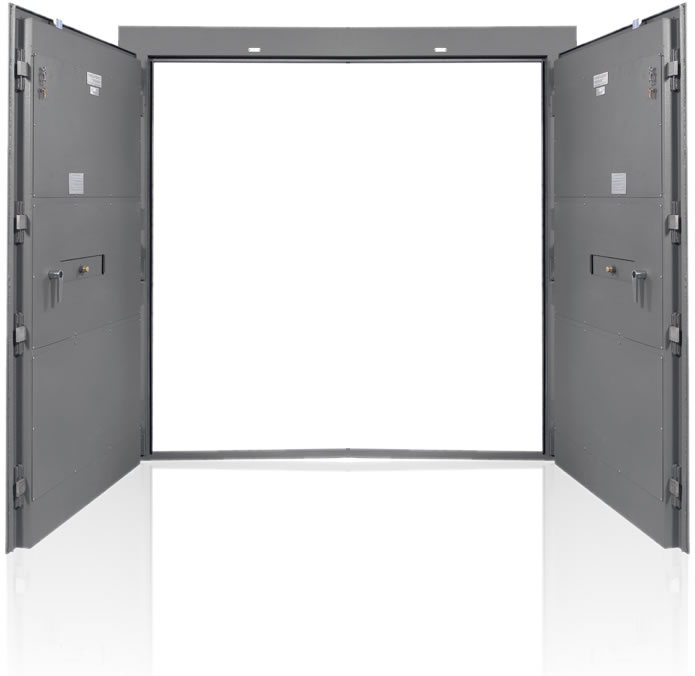

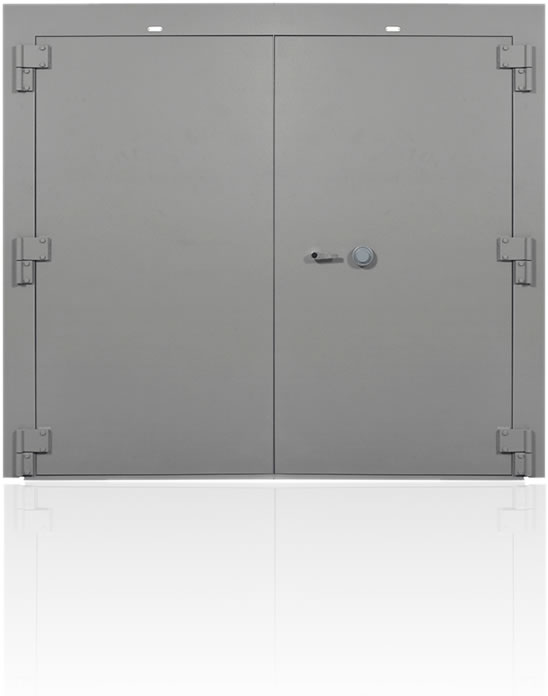

Double Leaf Vault Door (Armory and Security)
| Rating: | Class 5-A or Class 5-V Equal |
|---|---|
| Lock | Sergeant and Greenleaf 2937 or Kaba Mas X-10 |
| Federal Specification: | FF-L-2937 or FF-L-2740 |
| Clear Opening: | 80" x 78" |
| Masonary Opening: | 88" x 83" |
| Weight: | Approximately 3,000 lbs. |
| Available Swing: | Left or Right Active Swing |
| Interior Escape Device | Yes |
| Optical Device: | Optional |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | Frame, threshold and hardware are included. Door can be ordered without exterior hardware. |

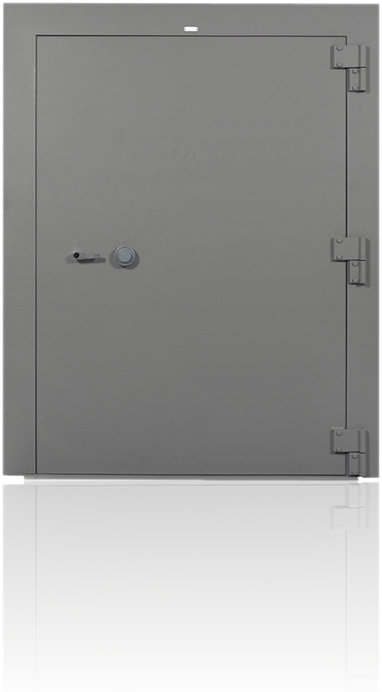

Special Sized Vault Door
| Rating: | Class 5-A or Class 5-V Equal |
|---|---|
| Lock | Sergeant and Greenleaf 2937 or Kaba Mas X-10 |
| Federal Specification: | AA-D-0600 , FF-L-2740 |
| Clear Opening: | As desired |
| Masonary Opening: | Will advise per clear opening |
| Weight: | Will advise per size |
| Available Swing: | Left Swing / Right Swing |
| Interior Escape Device | Yes |
| Optical Device: | Optional |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | Frame, threshold and hardware are included. |
Ballistic Vault Door
Our Ballistic Rated Vault Doors are Class 5 equal built and can be fitted with either the Sergeant and Greenleaf 2937 lock or the Kaba Mas X-10 lock. The standard size for this door is 40" x 78" clear opening and includes frame, threshold and hardware. Optical device is optional and an interior escape device is included.
Please contact us for more information regarding the Ballistic Vault Door. Price is available upon request.
Please contact us for more information regarding the Ballistic Vault Door. Price is available upon request.
Fire Rated Vault Door
Our Fire Rated Vault Doors are built to a 32" x 78" or 40" x 78" clear opening dimension. These doors are UL Class 350 fire rated doors, which come in either a 2, 4 or 6 hour protection. This door is provided with a three-tumbler group II key change combination lock with relocking device and includes frame, threshold and hardware. The standard day gate used with this door is a 32" or 40" wide plexiglass unit.
Please contact us for more information regarding the Fire Rated Vault Door. Price is available upon request.
Please contact us for more information regarding the Fire Rated Vault Door. Price is available upon request.

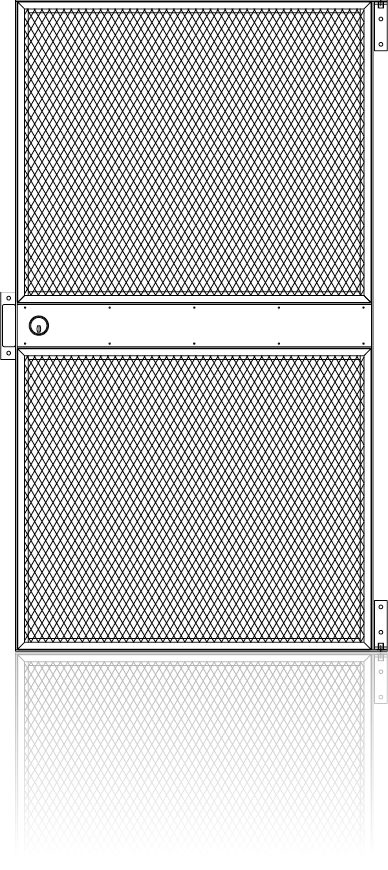

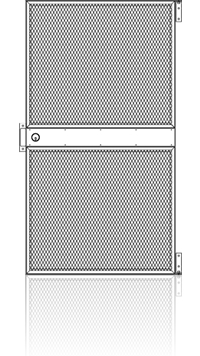

Standard Matching Day Gate
| Style: | Standard Matching Day Gate |
|---|---|
| Lock | Deadbolt, keyed outside / thumb latch inside |
| Options: | Door Closure, Self Latching Lock |
| Clear Opening: | 40" x 78" (Matches Class 5 Vault Door) |
| Masonary Opening: | Mounted on Class 5 Door Frame |
| Weight: | 130 lbs. |
| Available Swing: | Left Swing / Right Swing |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | 11 ga. steel mesh with heavy duty hinges. |

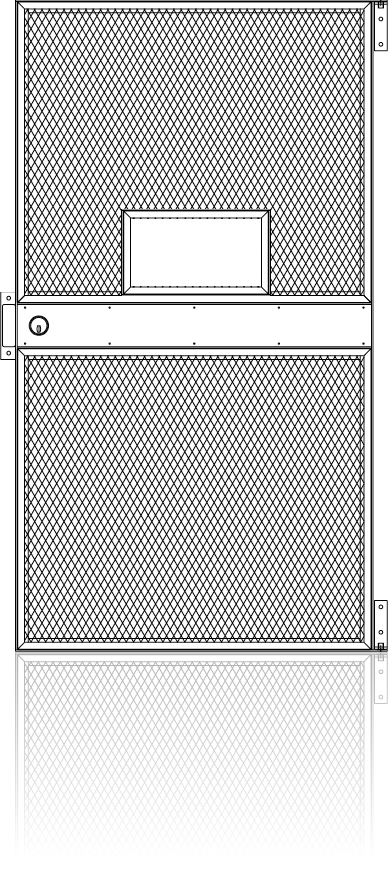

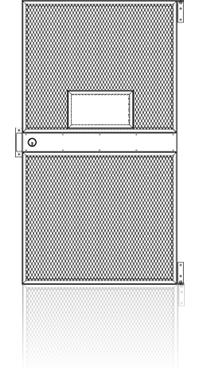

Issue Port Day Gate
| Style: | Standard Matching Day Gate with 8" x 12" Issue Port |
|---|---|
| Lock | Deadbolt, keyed outside / thumb latch inside |
| Options: | Door Closure, Self Latching Lock |
| Clear Opening: | 40" x 78" (Matches Class 5 Vault Door) |
| Masonary Opening: | Mounted on Class 5 Door Frame |
| Weight: | 130 lbs. |
| Available Swing: | Left Swing / Right Swing |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | 11 ga. steel mesh with heavy duty hinges. The issue port is 8" x 12" and has a stainless steel shelf that folds up and locks with 2 barrel bolts over the issue port. |

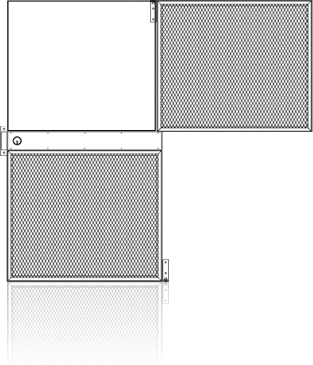

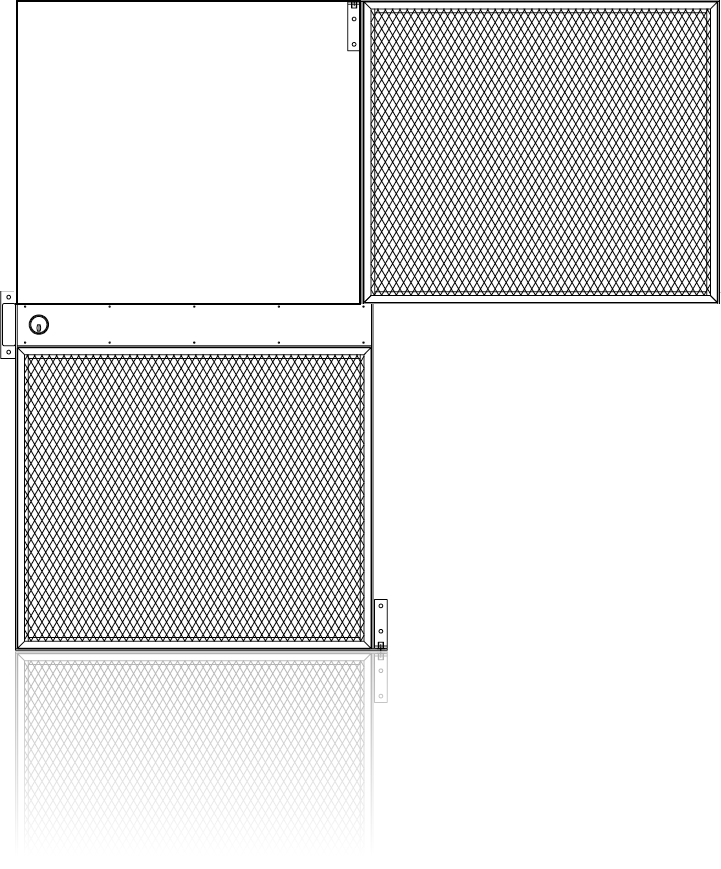

Dutch Door Day Gate
| Style: | Dutch Door Day Gate |
|---|---|
| Lock | Deadbolt, keyed outside / thumb latch inside |
| Options: | Door Closure, Self Latching Lock |
| Clear Opening: | 40" x 78" (Matches Class 5 Vault Door) |
| Masonary Opening: | Mounted on Class 5 Door Frame |
| Weight: | 130 lbs. |
| Available Swing: | Left Swing / Right Swing |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | 11 ga. steel mesh with heavy duty hinges. The dutch door day gate consists of both a top and bottom leaf, which swing independently of each other. The top half locks to the bottom half when shut. |

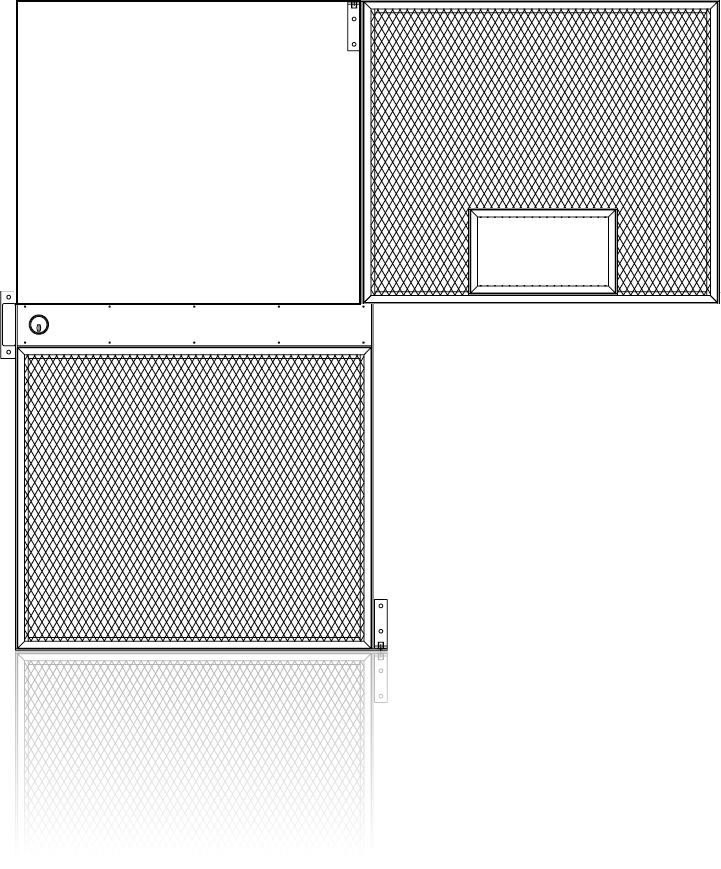

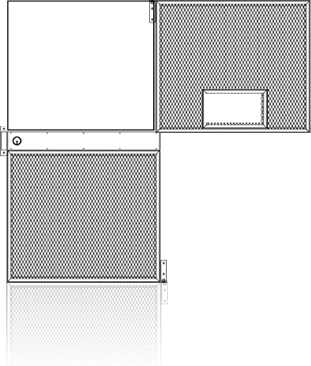

Dutch Door with Issue Port Day Gate
| Style: | Dutch Door Day Gate with Issue Port |
|---|---|
| Lock | Deadbolt, keyed outside / thumb latch inside |
| Options: | Door Closure, Self Latching Lock |
| Clear Opening: | 40" x 78" (Matches Class 5 Vault Door) |
| Masonary Opening: | Mounted on Class 5 Door Frame |
| Weight: | 130 lbs. |
| Available Swing: | Left Swing / Right Swing |
| Paint Color | Gray |
| Price: | Please contact us for pricing |
| Description | 11 ga. steel mesh with heavy duty hinges. The dutch door day gate consists of both a top and bottom leaf, which swing independently of each other. The top half locks to the bottom half when shut. The top leaf has an 8" x 12" issue port and has a stainless steel shelf that folds up and locks with 2 barrel bolts over the issue port. |
